M5Stack M5Atom v1.1 Set K041-B: Barcode & QR Scanner 2D / 1D + Atom Lite Module
Product number: M5-K041-B
€69.90
Available · 4 piece · 1-3 days
€69.90*
Product information "M5Stack M5Atom v1.1 Set K041-B: Barcode & QR Scanner 2D / 1D + Atom Lite Module"
The kit from M5Stack, which includes the v1.1 code scanning module and the M5Atom Lite runtime developer module. The scanner supports 6 types of 2D codes and up to 19 types of 1D codes. It is equipped with LEDs that allow you to work with the scanner even in difficult lighting conditions.
The scanner can be customised according to your needs, it has the function of automatic and manual triggering. The product is also equipped with a buzzer that triggers various sound effects depending on the current status. The operation of the device can be programmed using the UIFlow graphical environment and the Arduino IDE.
Key features of the set
- Module compatible with Atom Lite and Matrix
- LED lighting system
- The built-in ESP32 chip enables WiFi communication
- Communication via UART/TTL
- Multiple operating modes - manual and automatic scan mode
- Possibility of pre-editing and masking data
- Supported formats: RAW/GBK/Unicode
| M5Atom QR Code v1.1 module | |
|---|---|
| Sensor | 640 x 480 px CMOS |
| Illumination | white LED |
| Supported code types | 2D: QR Code, microQR, Data Matrix, PDF417, microPDF417, Aztec 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2/5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2/5 |
| Power supply | 3.3V / 170mA |
| Contrast ratio | over 25% |
| FOV | 34°H, 28°V |
| Scan angle | 360° rotation, ±55° tilt, ±55° yaw |
| Communication interface | UART/TTL |
| Dimensions | 48x24x18mm |
| Weight | 17g |
M5Stack Atome Lite
- ESP32-based
- RGB LED(SK6812)
- Programmable button
- Inbuilt infrared signal
- Expandable pins & holes
- Programming platform: Arduino, UIFlow
- Scanner module
- M5Atom Lite
- Hexagon socket spanner
- Mounting screw
- USB C cable 20 cm long
| Zolltarifnummer: | 84733080 |
|---|---|
| Brand: | M5Stack |
| Country of Origin: | China |
| EAN: | 6972934174116 |
| Gross Weight (kg): | 0.045 |
| Manufacturer ID: | K041-B |
| Product ID: | M5-K041-B |
M5Stack
M5Stack – Simplifying Modular IoT Development and Prototyping
M5Stack is an innovative platform designed for developing and prototyping IoT applications. Featuring modular components and a user-friendly environment, M5Stack enables developers and makers to bring their ideas to life quickly and efficiently.

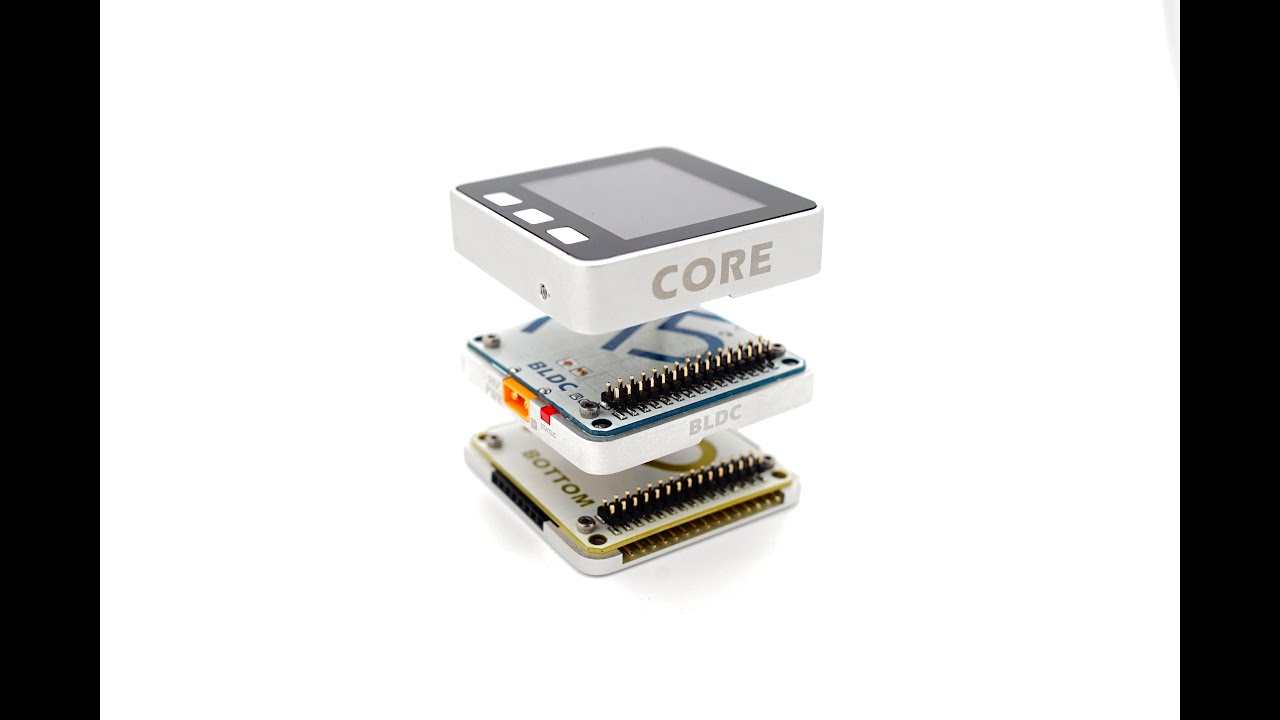

The core product range includes programmable development boards, modules, sensors, and accessories. The boards often feature the ESP32 chip, which integrates Wi-Fi and Bluetooth connectivity, making them ideal for IoT and smart applications. Popular models include the M5Stack Core, M5StickC, and M5Paper, each tailored to specific needs.
M5Stack’s modular extensions, such as sensor and communication modules, provide exceptional flexibility. Users can easily add GPS, cameras, relays, or displays to their projects, enabling IoT solutions in areas like home automation, robotics, agriculture, and industrial control.
A key feature of M5Stack is its intuitive software support. The platform is compatible with development environments like Arduino, UIFlow (block-based programming), and MicroPython, making it accessible to both beginners and experienced developers.
With its combination of modular hardware, powerful software, and an active community, M5Stack offers an ideal foundation for IoT developers looking to innovate and realize their projects efficiently.
M5Stack Technology Co, Ltd
501, 5F, Tangwei Stock Commercial Building, Youli Road, Bao\'an District
CN 518000 Shenzhen
https://m5stack.com
[email protected]
WEEE number: 41403304
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
[email protected]
Safety instructions
- Avoid contact of the product with water or other liquids to prevent short circuits.
- Only use the product under the recommended operating conditions (voltage, current, temperature).
- Modifications or tampering with the hardware can cause damage and invalidate the warranty.
- Keep the product away from heat-intensive sources and direct sunlight.
- Store the product safely and out of the reach of children.
- Dispose of the product in accordance with local regulations for electronic waste.
- Do not use damaged or improper power sources or cables.
- Take care to protect the product from electrostatic discharge (ESD).
- Do not leave the device unattended during operation, especially for projects with rechargeable batteries.
- In the event of visible damage or malfunctions, stop operation immediately and check the product.
