M5Stack QR-Code Scanner Unit, STM32F030, 640x480 CMOS, I2C/UART, Multicode Support
Product number: M5-U173
€24.50
Available · 3 piece · 1-3 days
€24.50*
Product information "M5Stack QR-Code Scanner Unit, STM32F030, 640x480 CMOS, I2C/UART, Multicode Support"

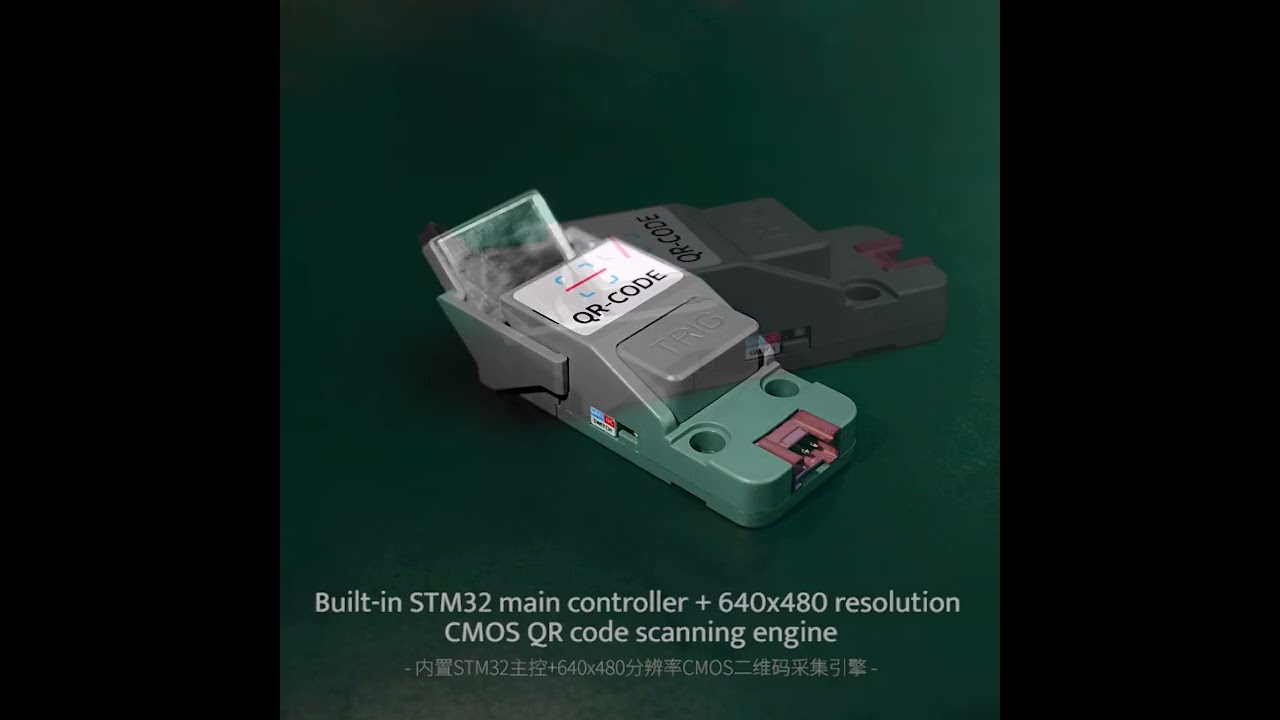

The QR-Code Scanner Unit with STM32F030 microcontroller combines precise code capture and flexible communication (I2C/UART) in a compact design. Ideal for logistics, retail and manufacturing, it enables easy scanning with customisation options for different applications. Includes HY2.0-4P cable and user-friendly features such as scan button and LED signals.
Features at a glance
- Integrated CMOS QR code capture unit with a resolution of 640x480
- Supports three types of two-dimensional codes and eight types of one-dimensional codes
- Switchable between I2C and UART communication interfaces by means of a switch
- Built-in trigger button, buzzer and auxiliary LEDs for audio-visual signals
- Programmable manual or automatic trigger mode
- Firmware can be updated via interface
- MCU: STM32F030F4P6, 32-bit ARM Cortex-M0 processor
- Sensor: 640x480 CMOS
- Illumination: White LED
- Focusing and aiming aid: Green LED
- Supported QR codes: PDF417, QR Code, Data Matrix
- Supported one-dimensional code types: Code39, Code93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5
- Recognition accuracy: ≥5mil
- Print contrast: ≥ 20%
- Scan angle: elevation ±55°, declination ±55°
- Communication interface: I2C serial (0x21)
- Housing material: Plastic (PC)
- Product size: 65.8*18.4*15.8mm
- Package size: 136*92*16mm
- Product weight: 14g
- Package weight: 19.4g
- 1x QRCode unit
- 1x HY2.0-4P cable (20cm)
Docs: https://docs.m5stack.com/en/unit/Unit-QRCode
| Zolltarifnummer: | 84733080 |
|---|---|
| Brand: | M5Stack |
| Country of Origin: | China |
| EAN: | 6972934175069 |
| Gross Weight (kg): | 0.024 |
| Manufacturer ID: | U173 |
| Product ID: | M5-U173 |
M5Stack
M5Stack – Simplifying Modular IoT Development and Prototyping
M5Stack is an innovative platform designed for developing and prototyping IoT applications. Featuring modular components and a user-friendly environment, M5Stack enables developers and makers to bring their ideas to life quickly and efficiently.
The core product range includes programmable development boards, modules, sensors, and accessories. The boards often feature the ESP32 chip, which integrates Wi-Fi and Bluetooth connectivity, making them ideal for IoT and smart applications. Popular models include the M5Stack Core, M5StickC, and M5Paper, each tailored to specific needs.
M5Stack’s modular extensions, such as sensor and communication modules, provide exceptional flexibility. Users can easily add GPS, cameras, relays, or displays to their projects, enabling IoT solutions in areas like home automation, robotics, agriculture, and industrial control.
A key feature of M5Stack is its intuitive software support. The platform is compatible with development environments like Arduino, UIFlow (block-based programming), and MicroPython, making it accessible to both beginners and experienced developers.
With its combination of modular hardware, powerful software, and an active community, M5Stack offers an ideal foundation for IoT developers looking to innovate and realize their projects efficiently.
M5Stack Technology Co, Ltd
501, 5F, Tangwei Stock Commercial Building, Youli Road, Bao\'an District
CN 518000 Shenzhen
https://m5stack.com
[email protected]
WEEE number: 41403304
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
[email protected]
Safety instructions
- Avoid contact with water and moisture to prevent damage to electronic components.
- Do not disassemble or modify, as this may impair functionality and cause safety risks.
- Keep the product away from heat sources, naked flames and direct sunlight.
- Only use with compatible power sources and accessories to avoid malfunctions or hazards.
- Keep out of reach of children to prevent accidental use or ingestion.
- Do not charge or use the product if there is visible damage.
- Only use the product under the manufacturer's specified operating conditions.
- Use suitable electronics recycling centres for disposal to avoid environmental pollution.
- Always observe the manufacturer's safety guidelines and instructions.
