€26.90
Available · 100+ piece · 1-3 days

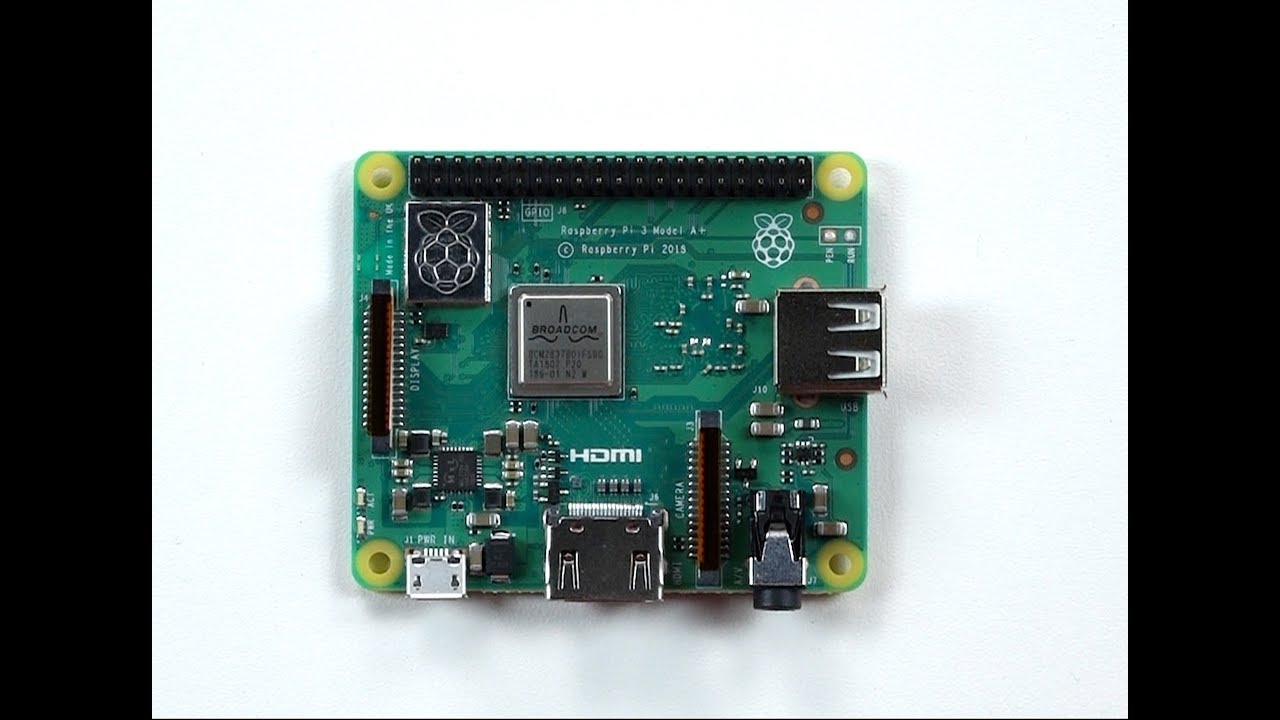

Product information "Raspberry Pi 3 Model A+"
Like the Raspberry Pi 3 Model B+, it has a 64-bit quad-core processor with 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN and Bluetooth 4.2/BLE.
The Raspberry Pi 3 Model A+ has the same mechanical size as the Raspberry Pi 1 Model A+.
Technical data
- Processor
- Broadcom BCM2837B0 Chipset
- 64 bit Quad Core ARM Cortex-A53 @ 1.4 GHz
- Memory
- 512 MB LPDDR2 SDRAM
- Connectivity
- 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac Wireless LAN
- Bluetooth 4.2 BLE
- 1x USB 2.0 port
- Access
- 40 pin GPIO header
- Picture & sound
- 1x HDMI type A connection
- MIPI DSI display port
- MIPI CSI camera port
- Combined 3.5mm 4-pin jack socket for analogue audio and composite video
- Multimedia
- H.264, MPEG-4 decode (1080p30)
- H.264 encode (1080p30);
- OpenGL ES 1.1, 2.0 graphics
- SD card support
- Micro SD format for loading the operating system and as data storage
- Micro SD format for loading the operating system and as data storage
- Power supply
- 5V/2.5A DC via micro USB type B socket
- 5V DC via GPIO header
- Environment
- Operating temperature: 0-50° C
- Dimensions: 65 x 56 x 8.5 mm
- 65 x 56 x 8.5 mm
- Drill hole diameter: 2.75mm
Note:
Please note that the Raspberry Pi 3 Model A+ is not compatible with images prior to 11 October 2018!
Zolltarifnummer: | 84714900 |
---|---|
Brand: | Raspberry Pi |
Country of Origin: | Great Britain |
EAN: | 0652508442181 |
Gross Weight (kg): | 0.100 |
Manufacturer ID: | SC0130 |
Product ID: | RPI3-AP |
VPE: | 1 / 150 |


Raspberry Pi Foundation
Raspberry Pi: A real success story
Hardly any of the developers of the Raspberry Pi would have guessed at the beginning what gigantic popularity their mini computer would one day enjoy. The original motivation of the creators was to counteract the declining number of computer science students at Cambridge University. The previous knowledge among the decreasing number of first-year students was also decreasing noticeably. The remedy was to be a computer that was easy to use and as cheap as possible, with which programming could be learned in a playful way. According to the developers, young people interested in programming are reluctant to experiment with more expensive and complex home computers for fear of possible damage. In 2006, for example, a prototype was already produced with an Atmel ATmega644 microcontroller. However, the actual success story of the Raspberry Pi only began at the beginning of 2012, when the first official Raspberry Pi model came onto the market. By the end of 2019, around 30 million copies of the popular mini computer had been sold.
Raspberry Pi Foundation
Behind the success is, on the one hand, the Raspberry Pi Foundation, a British foundation that is also registered as a charity. The aim of the foundation, whose trustees to this day come at least in part from the Cambridge University environment, is to promote the study of computer science - at universities as well as at schools. Production and distribution of the hardware, on the other hand, is carried out by Raspberry Pi Trading, a company wholly owned by the Raspberry Pi Foundation. The fact that the name "Raspberry" was ultimately chosen for the company is related to the trend in the IT industry at the time to name themselves after fruits - see Apple or Acorn. The suffix "Pi", on the other hand, stands for "Python interpreter" - a reference to the fact that the mini-computer was originally intended to be equipped with a built-in interpreter for the Python programming language. It is no coincidence that the Raspberry Pi is so popular because the compact single-board computer has many talents: on the one hand, it is suitable as an energy-saving desktop thanks to its 700 Mhz ARM CPU. But the Raspberry Pi is also suitable as an inexpensive media centre for the living room: thanks to its HDMI output and the XBMC interface, videos with 1080p resolution can be displayed on a screen as well as on a TV without any problems.
Tech projects with Raspberry Pi
Above all, however, the mini computer is extremely popular with tinkerers and programmers who like to experiment. A wide variety of tech projects can be carried out simply and easily with the help of the Raspberry Pi: For example, the mini computer can be used to create a game console, a robot or a weather station. Perhaps the most characteristic feature of the Raspberry Pi is its compactness: the dimensions of the small computer - depending on the model - are only up to 93.0 mm x 63.5 mm x 20.0 mm. At the same time, the powerful circuit board is only as big as a credit card. The Raspberry Pi is available in various versions and is constantly being optimised and re-released by its creators. At Berrybase, the in-house Raspberry Pi shop, you will not only find all Raspberry Pi models - you will also receive a huge range of Raspberry electronic products for countless areas of application - both from our own production and from established top brands. So nothing stands in the way of your next tech project!
Raspberry Pi Ltd.
194 Cambridge Science Park, Milton Road
GB CB4 0AB Cambridge
https://www.raspberrypi.com
[email protected]
WEEE number: 20453810
Person responsible for the EU
Raspberry Pi Ireland Limited
3 Dublin Landings
IE D01 C4E0 North Wall Quay, Dublin 1
https://www.raspberrypi.com
[email protected]
Safety instructions
- Keep the Raspberry Pi away from water and moisture to avoid short circuits.
- Only use the recommended power supply with the correct voltage and amperage.
- Ensure that all connections and cables are connected correctly to prevent damage.
- Work on an antistatic surface to prevent damage caused by electrostatic discharge (ESD).
- Do not leave the Raspberry Pi unattended when children have access to it.
- Avoid overheating: Ensure adequate ventilation or use a heat sink.
- Avoid contact with live components; disconnect the device from the mains when working on it.
- Dispose of the product in accordance with local regulations for electronic waste.
- Dispose of batteries or rechargeable batteries used with the Raspberry Pi safely and in accordance with regulations.
- Do not continue to use the device if there is visible damage, heat damage or malfunctions.
