SparkFun Qwiic - IR-Array Breakout, 55 degree FOV, MLX90640

Name: SparkFun Qwiic - IR-Array Breakout, 55 degree FOV, MLX90640
Brand: SparkFun
SKU: SEN-14844
Price: 89.2 EUR
Availability: SoldOut

Product number: SEN-14844

€89.20

Prices incl. VAT plus shipping costs

Notify me when the item is available.

Privacy

By selecting continue you confirm that you have read our data protection information and accepted our general terms and conditions. *

€89.20*

SparkFun Qwiic - IR-Array Breakout, 55 degree FOV, MLX90640

Order now and secure 45 Berrys

Our recommendations for you

Product information "SparkFun Qwiic - IR-Array Breakout, 55 degree FOV, MLX90640"

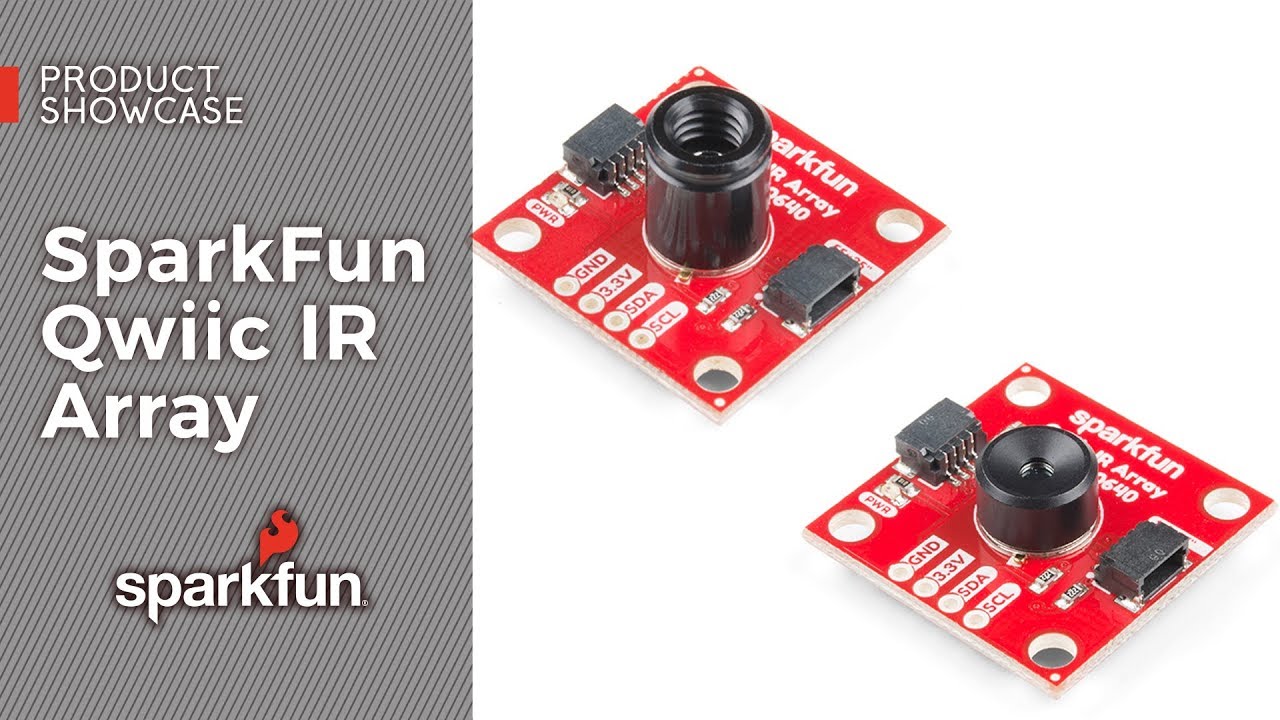

The MLX90640 SparkFun IR Array Breakout is equipped with a 32x24 array of thermopile sensors that essentially form a low resolution thermal imaging camera. With this breakout, you can detect surface temperatures from many metres away with an accuracy of ±1.5°C (at best). To make it even easier for you, all communication is handled exclusively via I2C, using our handy Qwiic system. Nevertheless, we have broken out the pins at 0.1" spacing in case you prefer to use a breadboard.

This special IR array breakout has a 55°x35° field of view with a temperature measurement range of -40°C-300°C. The MLX90640 IR array has pull-up resistors on the I2C bus; both can be removed by cutting the traces on the corresponding jumpers on the back of the board. Please note that the MLX90640 requires complex calculations by the host platform, so a normal Arduino Uno (or equivalent) will not have enough RAM or flash to perform the complex calculations required to turn the raw pixel data into temperature data. You will need a microcontroller with 20,000 bytes or more of RAM. To achieve this, we recommend a Teensy 3.1 or higher.

Features:

Operating voltage: 3V-3.6V
Power consumption: ~18mA
Field of view: 55°x35°
Measuring range: -40°C-300°C
Resolution: ±1.5°C
Refresh rate: 0.5Hz-64Hz
I2C address: 0x33
2x Qwiic Connection Ports

Documents:

Get Started with the SparkFun IR Array Breakout Guide
Circuit Diagram
Eagle files
Connection guide
Datasheet (MLX90640)
GitHub
