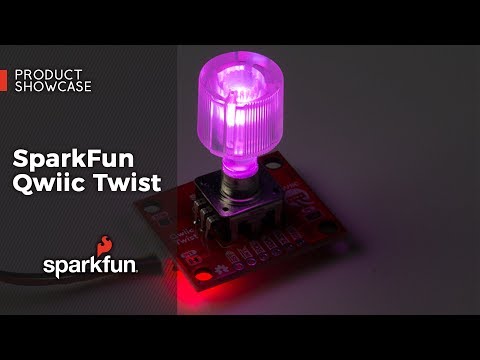

SparkFun Qwiic Twist - RGB Rotary Encoder / Incremental Encoder Breakout
Product number: DEV-15083
€25.90
Available · 8 piece · 1-3 days
€25.90
Customers also bought
Content: 10 Stück (€0.57 / 1 Stück)
Available · 45 piece · 1-3 days
Content: 10 Meter (€0.19 / 1 Meter)
Available · 100+ piece · 1-3 days
Available · 100+ piece · 1-3 days
Content: 10 Meter (€0.73 / 1 Meter)
Available · 7 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 67 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 1 piece · 1-3 days
Available · 48 piece · 1-3 days
Available · 6 piece · 1-3 days
Available · 100+ piece · 1-3 days
Description
Product information "SparkFun Qwiic Twist - RGB Rotary Encoder / Incremental Encoder Breakout"
One clockwise rotation of the encoder increases the total by 24 and -24 anti-clockwise. The number of "ticks" or steps you have turned the knob are all transmitted via I2C. The red, green and blue LEDs are all set via software commands and can be digitally mixed to achieve over 16 million colours!
We have designed the Qwiic Twist with an indented encoder that gives the user a great "clicky" feel. Additionally, the encoder has an inbuilt button so that the user can select a GUI menu or item by pressing down on it. The Qwiic Twist uses a 6mm shaft and works great with our clear plastic button listed in the hookup accessories below, or any other 6mm button.
We've also written an Arduino library for the Qwiic Twist that shows all the different functions of the Twist and allows for easy interfacing to the breakout, including a variety of examples!
Note: The I2C address of the encoder is 0x3F and can be changed to 0x3E via jumper (configurable to any address via software). A multiplexer/mux is required to communicate with multiple Rotary Encoder sensors on a single bus. If you want to use more than one rotary encoder sensor, you should use the Qwiic Mux Breakout.
Features:
- Length/Width: 1" x 1.2" (25.4mm x 30.5mm)
- Height: 0.984" (25mm)
- Voltage: 3.3V
- Current
- approx. 2.8mA LEDs off
- Approx. 40.6mA with LEDs on 100%
- 24 ticks per 360° rotation
- Clockwise and anti-clockwise are recognised
- Software configurable I2C address - up to 111 devices on one bus
- Built-in push button
- RGB LED control via PWM enables up to 16M colours
- Up to 400kHz I2C communication
- Jumper for address selection, interrupt pull-up deactivation and I2C pull-up deactivation
- I2C address: 0x3F (jumper open, standard), 0x3E (jumper closed)
- 2x Qwiic connector
- Get Started With the SparkFun Qwiic Twist Guide
- Circuit diagram
- Dimensioned drawing: PDF / JPG
- PEL12T Encoder Datasheet
- Eagle files
- Connection instructions
- Tab: PDF / JPG
- Qwiic page
- Arduino library
- GitHub
