Product information "Waveshare ESP32-S3, 1.28 inch IPS LCD, WiFi / BT, 240x240, 6-axis IMU, 32-bit LX7 Dual-core, round"

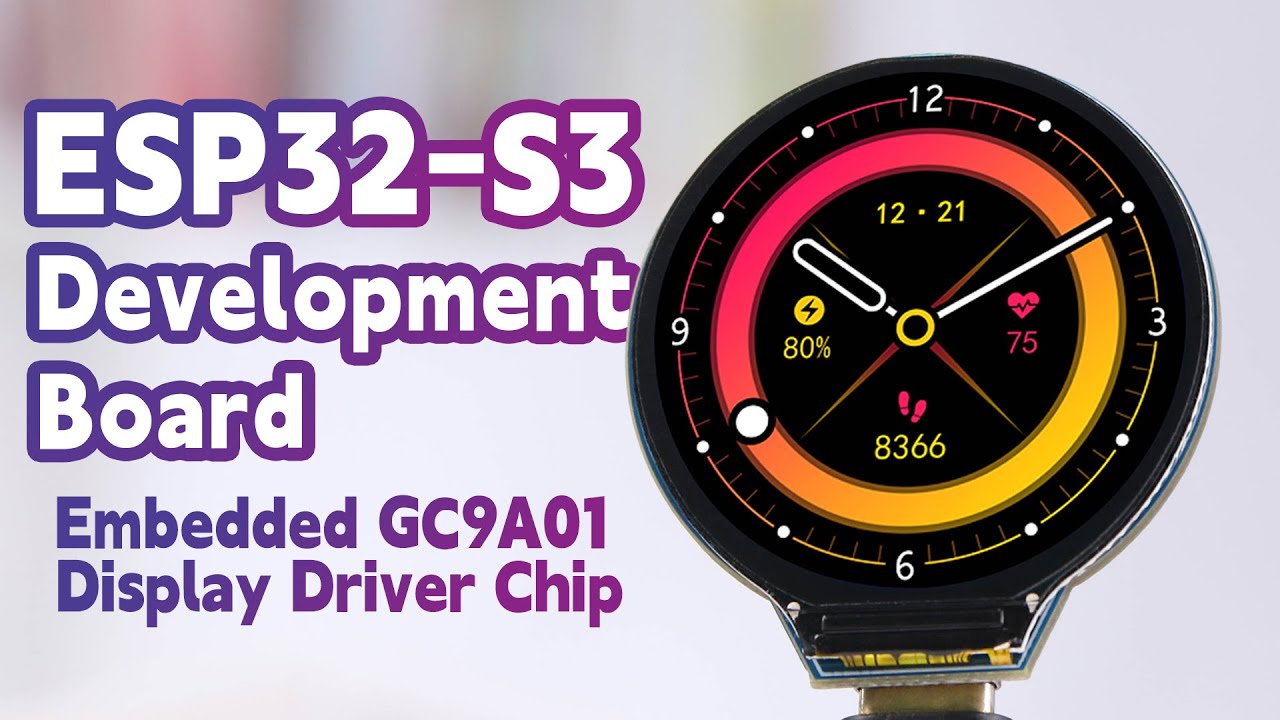

ESP32-S3 development board with 1.28 inch IPS round LCD
The ESP32-S3-LCD-1.28 development board from Waveshare is a versatile and cost-effective microcontroller board, ideal for IoT projects. It features a 1.28-inch LCD, integrated lithium battery charging chip and a precise IMU six-axis sensor. At its heart is the ESP32-S3R2 SoC, which offers low-power Wi-Fi and BLE5.0 and has ample memory with 16MB Flash and 2MB PSRAM.

The board supports advanced security features such as hardware encryption accelerators and digital signatures, making it secure and trustworthy for use in smart homes and other sensitive IoT applications. Its low-power modes also make it ideal for mobile and wearable applications, enabling the development of flexible and energy-efficient IoT devices.

Features at a glance

Compact design with a powerful 32-bit LX7 dual-core processor and GC9A01 display driver chip.
Integrated round IPS LCD with 240x240 resolution and 65K colours.
Versatile connectivity through WiFi/Bluetooth, supported by an integrated ceramic antenna.

Compatibility

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE) with onboard antenna.
Type-C connector for modern and easy use.

Technical specifications

Processor: ESP32-S3R2 SoC with WiFi and Bluetooth, up to 240MHz operating frequency, onboard 2MB PSRAM
Memory: W25Q128JVSIQ 16MB NOR flash
Sensors: QMI8658 6-axis IMU (3-axis gyroscope and 3-axis accelerometer)
Power management: ME6217C33M5G 800mA output, low dropout, high rejection rate
Charge management: ETA6096 high-efficiency lithium battery charge manager
USB to UART: CH343P chip for USB to UART communication
Battery connector: MX1.25 2P connector for 3.7V lithium battery, supports charging and discharging
Antenna: 2.4GHz ceramic antenna
GPIO pins: 1.27mm pitch headers, customisation of multiple GPIO pins

Other data

Onboard 3.7V lithium battery charge/discharge connector and GPIO header
Flexible clock support and independent module power supply settings
Integrated USB serial port Full-speed controller, configurable GPIO pins

Scope of delivery

1x ESP32-S3-LCD-1.28

Development resources
Wiki: ESP32-S3-LCD-1.28

Zolltarifnummer:	85437090
Brand:	Waveshare
Country of Origin:	China
EAN:	4060137091759
Gross Weight (kg):	0.01
Manufacturer ID:	ESP32-S3-LCD-1.28
Product ID:	WS-26541
