Product information "SparkFun Thing Plus, ESP32 WROOM (U.FL)"
Why the name? We affectionately call it the "Thing" because it's the perfect foundation for your Internet of Things project. The Thing does everything from switching on an LED to sending data to your chosen platform, and it can be programmed like any microcontroller. You can even program the Thing via the Arduino IDE by installing the updated ESP32 Arduino Core.
The ESP32 Thing plus has an extensive periphery ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2Sand I2C. Thanks to the integrated ESP32 WROOM module, the SparkFun Thing Plus has 16 MB of flash memory, 520 kB of internal SRAM, an integrated 802.11 BGN WiFi transceiver and dual-mode Bluetooth capabilities, a JST connector for plugging in a LiPo battery and a U.FL connector for a custom antenna.
Features:
- Dimensions: 2.30 x 0.90 inches
- Xtensa® Dual-core 32-bit LX6 microprocessor
- Up to 240MHz clock frequency
- 16MB flash memory
- 520kB internal SRAM
- Integrated 802.11 BGN WiFi transceiver
- Integrated dual-mode Bluetooth (classic and BLE)
- U.FL connection
- 2.3 to 3.6 V operating range
- 21 GPIO
- Capacitive touch support with 8 electrodes
- Hardware-accelerated encryption (AES, SHA2, ECC, RSA-4096)
- 2.5 µA deep sleep current
Properties
| Zolltarifnummer: | 85176200 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| EAN: | 4060137067600 |
| Gross Weight (kg): | 0.007 |
| Manufacturer ID: | WRL-17381 |
| Product ID: | WRL-17381 |

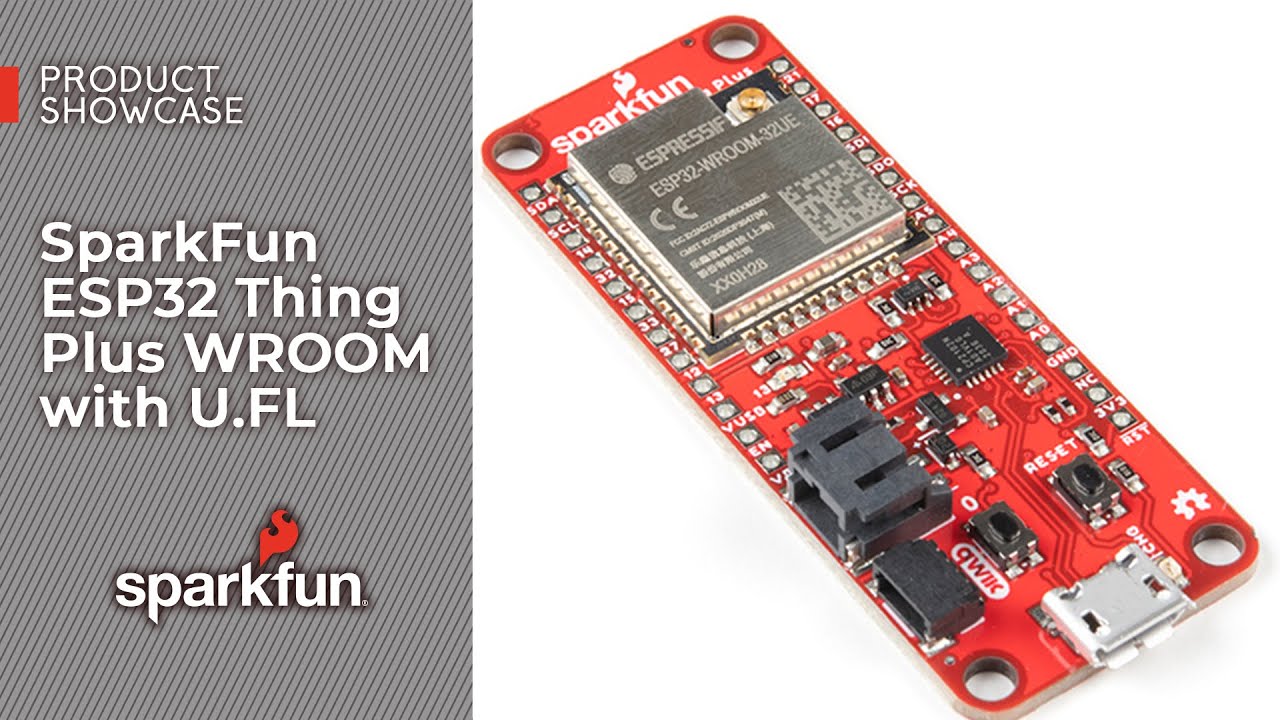

Video 1
Manufacturer and safety information
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
[email protected]
WEEE number: 17968585
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
[email protected]
Safety instructions
- Keep the product out of the reach of children.
- Do not use in damp or wet environments to avoid short circuits.
- Protect from overheating and direct sunlight.
- Do not supply inputs and outputs with the wrong voltage. Observe the operating voltage (typically 3.3 V).
- Do not touch with bare hands or conductive materials when the board is in operation.
- Improper handling can damage components or cause a fire hazard.
- Only use with approved power supply units and accessories.
- When soldering or modifying the product, secure it properly and observe earthing.
- Dispose of in accordance with local regulations for electronic waste.
- Do not dispose of with household waste, but take to an electronics recycling centre.
- Dispose of batteries/power supply units separately and in accordance with their specific regulations.
