MyoWare 2.0 Arduino Shield

Product number: DEV-18426

€11.85

Available · 2 piece · 1-3 days

Pick your accessory

Sparkfun MyoWare 2.0 LED Shield

€32.05

€11.85

MyoWare 2.0 Arduino Shield

Order now and secure 6 Berrys

Product information "MyoWare 2.0 Arduino Shield"

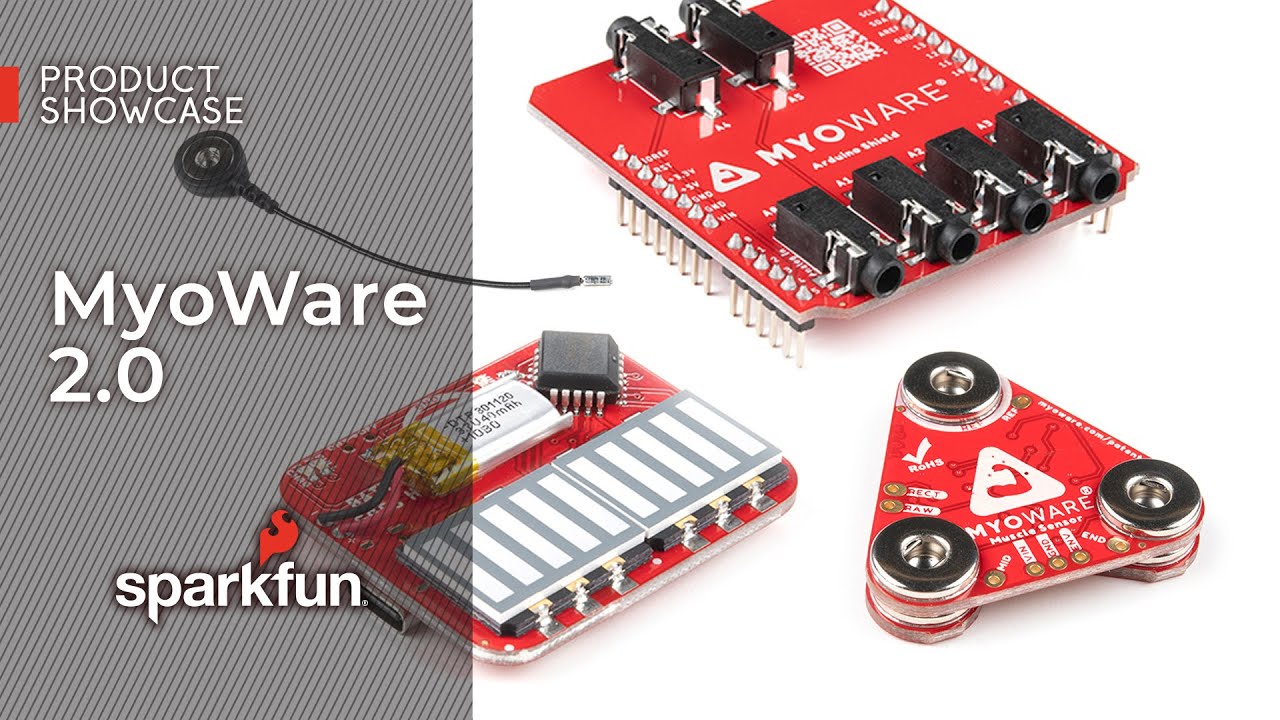

The MyoWare® 2.0 Arduino Shield is designed to connect up to six MyoWare 2.0 muscle sensors and link shields with 3.5mm TRS to TRS audio cables. The board comes pre-loaded with connectors, so all you need to do is plug it into your Arduino and connect the sensors to read up to six muscle groups!

The Arduino Shield form factor fits directly to development boards that have the Arduino Uno R3 standard footprint. All six analogue input pins (A0-A5) of the Arduino are reserved on this shield. There is a power jumper on the back of the Arduino shield that you can use to set the output voltage to 5 V (standard) or 3.3 V for the muscle sensors. You will need a MyoWare 2.0 Link Shield and a TRS-to-TRS cable for each MyoWare 2.0 muscle sensor.

Note: MyoWare and the Arduino Shield are not intended for use in the diagnosis of disease or other conditions or for the cure, mitigation, treatment or prevention of disease in humans or other animals.

The MyoWare® 2.0 ecosystem consists of shields that easily connect to the MyoWare® 2.0 muscle sensor, a low-cost, Arduino-compatible, all-in-one electromyography (EMG) sensor from Advancer Technologies. The innovative connector system allows users to simply snap together the shields with a compact, low profile and connect them to the analogue input of a microcontroller to measure the raw, filtered and rectified electrical activity of a target muscle. This eliminates the need to solder connections between boards.

This product is a collaboration with Brian Kaminski of Advancer Technologies. A portion of the sales proceeds will go towards product support and further development.

Getting started with the MyoWare 2.0 Arduino Shield Guide

Features:
6x 3.5 mm TRS connectors Connectors soldered Arduino Uno R3 standard footprint 3.3V/5V power supply jumper Board dimensions 53.34mm x 59.69mm (2.10? x 2.35?) Documents:
Board Dimensions Connection Instructions Advancer Technologies: MyoWare® 2.0 Quick Start Guide (4.37MB) Extended Manual (9.00MB) Patents^[1] Arduino Reference Language: ArduinoBLE Library GitHub Example Repo MyoWare 2.0 Ecosystem Page

Zolltarifnummer:	85369095
Brand:	SparkFun
Country of Origin:	USA
EAN:	4060137075919
Gross Weight (kg):	0.017
Manufacturer ID:	DEV-18426
Product ID:	DEV-18426
